Warehouse Design & Pallet Rack layout
Looking for warehouse design and layout services? Massey Rack helps you plan your warehouse layout and set up pallet rack systems. We help you get more storage space and improve your workflow. With over 50 years of combined team experience, we create solutions tailored to your specific needs.
What Is Warehouse Design and Layout?
Warehouse design involves planning the placement of storage systems, workflows, and equipment. Good design combines rack systems, handling equipment, and work processes. This creates a space where everything works well together.
A well-designed layout helps you store more, work faster, and spend less on operations.
Professional design services help spot opportunities you might miss on your own. Whether you’re building a new warehouse or fixing an old one, our team can help.
Our Warehouse Design Process
When you work with us for your warehouse racking services, we follow these critical steps:
-
Initial Consultation and Requirements Assessment
We begin by discussing your needs with you, then we review your inventory, equipment, and operational processes. We check your current and future inventory levels and examine product sizes, weights, and shipping speed. This helps us choose the right storage solutions.
-
Site Analysis and Space Planning
Our team measures the dimensions of your building, including its columns and ceiling height. We check floor strength and other structural features. This helps identify limitations and maximize space through smart planning.
-
3D CAD Design Development
We use CAD software to create 3D models of your warehouse layout. These models show you the design before we build. You’ll see where we’ll place racks, shelving, workstations, and traffic lanes.
-
Equipment Selection and Implementation Planning
We recommend the best pallet racking systems tailored to your needs. After you approve the design, we create a plan to set everything up with minimal business disruption.
Warehouse Design Considerations
Space Utilization and Storage Density
Workflow Optimization
Safety and Scalability

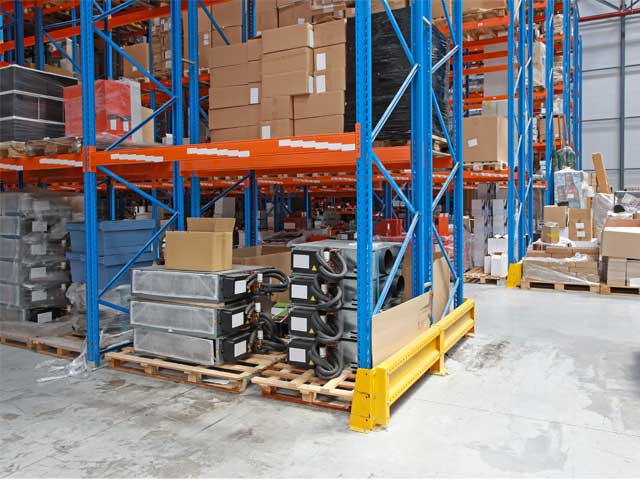

Our layouts include required aisle widths, sprinkler clearance, and floor load capacity. We also include rack protection and safety products to reduce damage. Designs are scalable for future growth.
Types of Warehouse Racking Systems

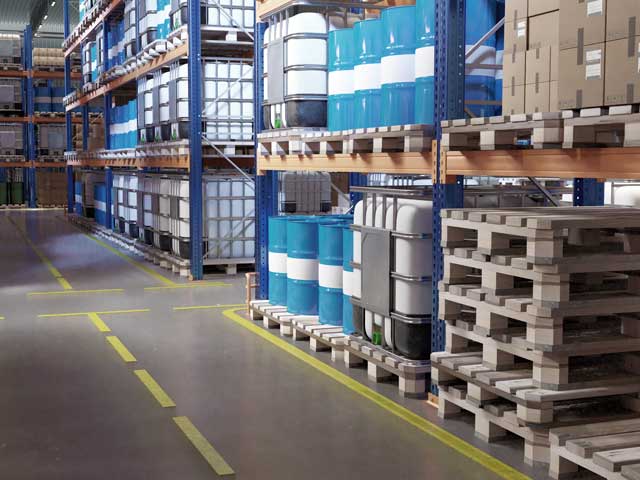

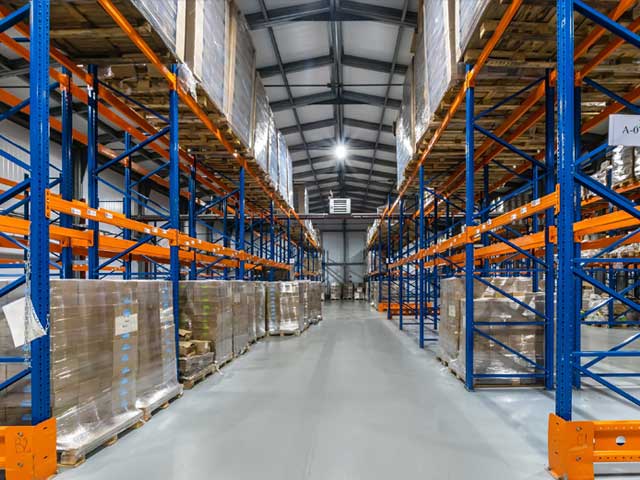

Selective Pallet Rack
Drive-In/Drive-Through Rack
Push-Back Rack
Pallet Flow Rack
Cantilever Rack

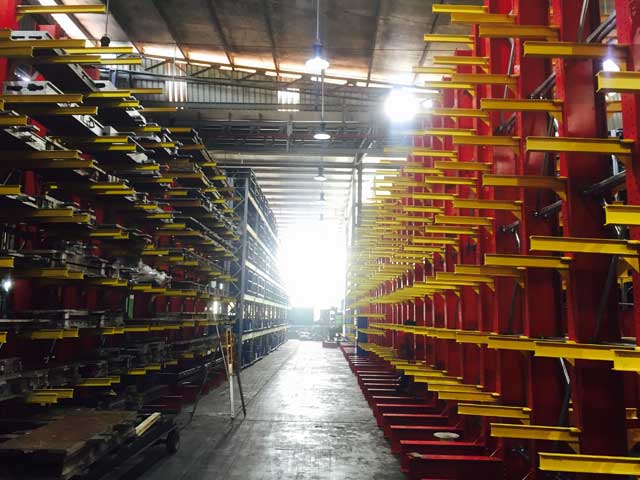

Cantilever rack storage holds long, bulky items like lumber, pipes, and furniture.
Why Choose Massey Rack for Warehouse Design
Learn more about warehouse racking company, and how we can help.
Industry Expertise
Customized Solutions
Advanced 3D Modeling
Data-Driven Approach
Cost-Effective Implementation
REVIEWS
Read what our customers say about our warehouse storage solutions.
Frequently Asked Questions
Design and Planning
How do I determine the best warehouse layout for my business?
It depends on your inventory, picking methods, and equipment. Consider sizes, weights, turnover rates, and available space. Professional planning helps create efficiency.
How long does the warehouse design process typically take?
- Small layouts: 1–2 weeks
- Medium facilities: 2–4 weeks
- Large/complex: 4–8+ weeks
Should I design for current needs or future growth?
Design for both. Use flexible layouts that can be expanded as needed.
Technical Specifications
What is the standard aisle width for forklift operation?
- Standard forklifts: 12–13 ft
- Reach trucks: 8–10 ft
- Narrow aisle trucks: 5–7 ft
How can I maximize vertical space in my warehouse?
Operational Considerations
What safety considerations should be included?
Maintain aisle widths, clear lines of sight, lighting, floor markings, and weight signs. Add guards and protectors at key points.
How does inventory turnover affect layout?
Contact Massey Rack
Ready to optimize your warehouse layout? Contact us today for a consultation. We’ll create a solution that fits your budget and needs.
